Reference Price:
Get Latest Price
Production Capacity
85-650t/h
Max Input Size
500-800mm
Output Size
50-225mm
Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Material: stone,rocks,pebble,limestone,calcite, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, coal gangue,basalt and other minerals.
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h

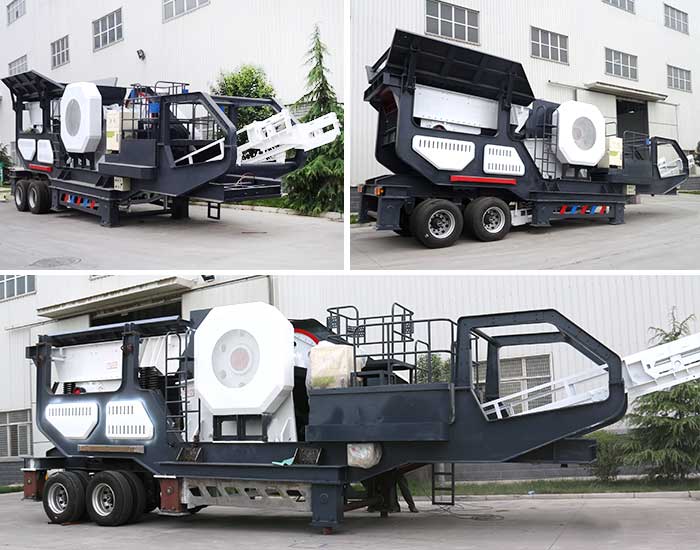

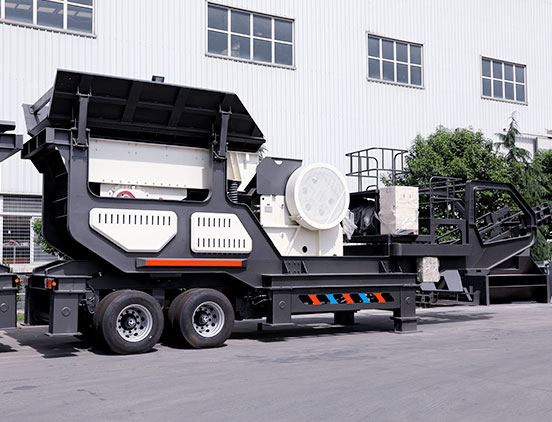

1.Mobile jaw crusher, as one of most widely used mobile crusher,is widely used to process stone,coal, limestone, granite, basalt, quartz, iron ore, gold ore, marble,construction waste and other materials in mining,quarry,construction and other fields.
2.According to materials fatures and your requirement, it can be used for primary,medium and fine crushing of the materials.
3.It can realize single-unit operation and multi-units operation according to your needs.There are two types for choice:crawler mounted mobile jaw crusher and tyre-type mobile jaw crusher.
4.Unit integration and compact configuration,it has low requirements on working site and strong adaptability to workig environment.
1.Large production capacity (85-650t/h),full specification for sale
2.Strong mobility,easy to enter and change working site,saving materials transportation costs
3.Additive generator unit to guarantee continuous operation and production
4.Guaranteed quality,easy operation and reliable performance
| Model | ZD938HD86 | ZD1149HD98 | ZD1349HD110 | ZD1349HD125 |
| Transportation Length(mm) | 12600 | 13500 | 14500 | 15200 |
| Transportation Width(mm) | 2600 | 2700 | 2800 | 2900 |
| Transportation Height(mm) | 3870 | 4200 | 4450 | 4500 |
| Maximum Length(mm) | 12500 | 14000 | 16100 | 14700 |
| Maximum Width(mm) | 4100 | 4500 | 5100 | 5100 |
| Maximum Height(mm) | 4100 | 4900 | 5000 | 5300 |
| Weight(t) | 39 | 57 | 55 | 65 |
| Tire Configuration | Dual-axial | Dual-axial | Dual-axial | Dual-axial |
| Jaw Crusher | HD86 | HD98 | HD110 | HD125 |
| Maximum Feeding Size(mm) | 500 | 550 | 660 | 800 |
| Discharge Opening Size(mm) | 50-150 | 75-175 | 100-200 | 125-225 |
| Capacity(t/h) | 85-275 | 110-350 | 215-510 | 280-650 |
| Vibrating Model | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 |
| Main Belt Conveyor | B800×8.5M | B1000×9.5M | B1000×11M | B1200×11M |
| Side-opening Belt conveyor(Optional) | B500×3M | B650×3.5M | B650×4M | B650×4M |
| Genset(Optional) (kw) | 200 | 250 | 270 | 400 |
| Iron Separator (Optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 |
Tell us your need such as capacity, materials, input and output size, we send the quote to you asap
Complete the form or email us (sales@zdzg.com) , we will reply to you within 24 hours.
Better to try nowWaiting For Your Inquiry
You can fill in the form or inquiry online to contact us
We will provide you product details, price,etc
Complete and full after-sales service for you
