Production Capacity
50-650t/h
More than 200 kinds of materials
Environmental Friendly
Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Material: stone,rocks,pebble,limestone,calcite, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, coal gangue,basalt and other minerals.
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h

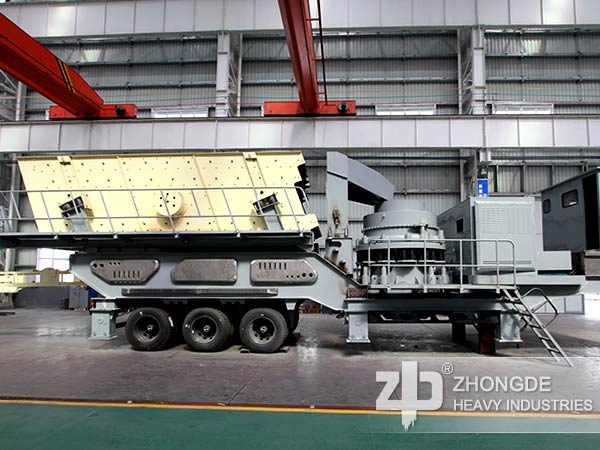

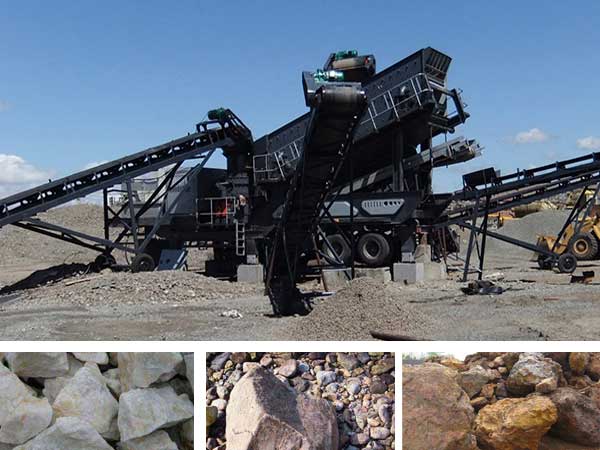

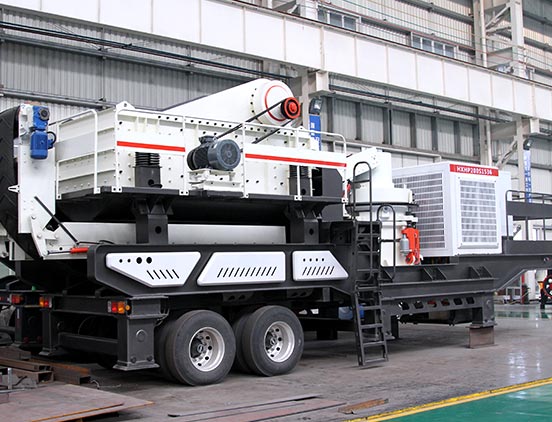

Mobile cone crusher is also equipped with self safety device, so that when uncrushable materials go into the crushing chamber or the machine is overloaded, it will automatically discharge the foreign matters, thus avoiding the damage to the equipment, and quickly resume to normal production. It is widely used for the production sites of road paving, building material, slag crushing and sand aggregates.
1.Equipped with efficient cone crusher, it has excellent crushing performance.
2.Optimized crushing cavity can significantly increase crushing ratio and output.
3.It features great production capacity, high reliability, easy maintenance, which greatly reduce the production cost.
4.Easy to adapt and flexible to collocate with other machines.
| Model | ZD3S185GYS300 | ZD3S216GYS400 | ZD3S216HP300 |
| Transportation Length（mm） | 14500 | 15000 | 16000 |
| Transportation Width（mm） | 3000 | 3000 | 4550 |
| Transportation Height（mm） | 4400 | 4500 | 17000 |
| Maximum Length（mm） | 17000 | 16000 | 4600 |
| Maximum Width（mm） | 3400 | 3900 | 6900 |
| Maximum Height（mm） | 5800 | 6500 | 4700 |
| Weight（t） | 34.5 | 49.5 | 41 |
| Tyre Configuration | biax fitted | triaxial fitted | triaxial fitted |
| Tire Configuration | GYS300 | GYS400 | HP300 |
| Feeding Belt Conveyor | B650×15M×2 | B800×15M×2 | B800×15M×2 |
| Discharging Belt Conveyor | B650×14M | B800×14M | B800×16M |
| Conveyor Belt for final products | B500×15M | B800×6M | B650×15M×2 |
| Under vibrating screen | B800×7M | B800×8M | B800×9M |
| Vibrating Screen Model | 3yk1854 | 3Yk2160 | 3Yk2160 |
