Reference Price:
Get Latest Price
Production Capacity
70-280t/h
Max Input Size
350-700mm
More than 200 kinds of materials
Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Material: stone,rocks,pebble,limestone,calcite, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, coal gangue,basalt and other minerals.
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h

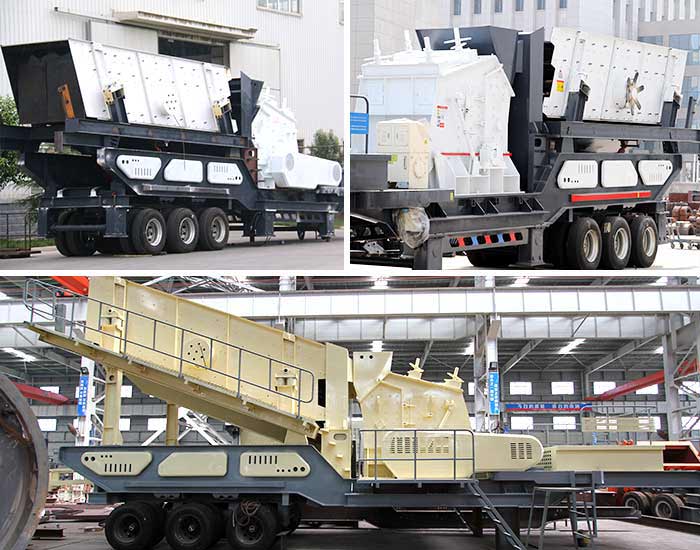

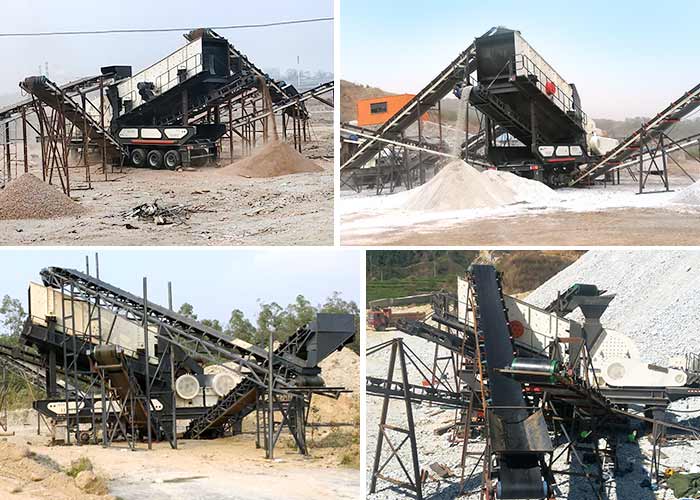

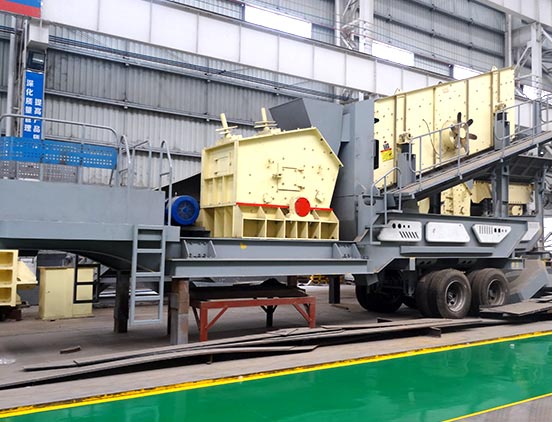

1.Mobile impact crusher, as one of most widely used mobile crushers,is widely used to process stone,coal, limestone, granite, basalt, quartz, iron ore, gold ore, marble,construction waste and other materials in mining,quarry,construction and other fields.
2.It can be used for primary, secondary and fine crushing of the materials according to the materials features and your needs.
3.Mobile impact crusher integrates crushing, screening and feeding on one machine and can directly move to the production site to put into production, which will greatly save the installation time and reduct the material transportation costs, improving production efficiency.
1. The integration of high-performance crusher, vibrating screen and belt conveyor.
2. Vehicle installation with belt conveyor and impact crusher.
3. Flexible mobility, reliable performance and easy maintenance.
4. Easy operation, accurate control.
5. Low fuel consumption, low noise.
6. Combine different crushing and screening machines, which can satisfy the crushing needs of different materials.
| Model | ZD938F1210 | ZD938F1214 | ZD1149F1315 | ZD938F1110 | ZD1349F1315 |
| Transportation Length（mm） | 12000 | 12000 | 13900 | 15450 | 15450 |
| Transportation Width（mm） | 2550 | 2550 | 2900 | 2950 | 2950 |
| Transportation Height（mm） | 3900 | 3900 | 4450 | 4500 | 4500 |
| Maximum Length（mm） | 12500 | 12500 | 13900 | 15450 | 15450 |
| Maximum Width（mm） | 3250 | 3260 | 3250 | 3250 | 3250 |
| Maximum Height（mm） | 5100 | 5200 | 5200 | 5200 | 5200 |
| Weight（t） | 39 | 44 | 54 | 62 | 62 |
| Crusher Model | PF-1210 | PF-1214 | PF-1315 | HD1110 | HD1315 |
| The Maximum Feeding Size（mm） | 350 | 350 | 500 | 400 | 700 |
| Production Capacity（t/h） | 70-130 | 100-180 | 130-250 | 112 | 280 |
| Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 | ZSW130×4900 | ZSW130×4900 |
| Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M | B800×11M | B1200×11M |
| Side-opening Belt conveyor(Optional) | B500×3.2M | B500×3.2M | B650×4M | B650×4M | B650×4M |
| Genset(Optional) （kw） | 320 | 320 | 400 | 320 | 440 |
| Iron Separator (Optional)（kw） | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-8 | RCYD(C)-12 |
