Reference Price:
Get Latest Price
Production capacity
10-60t/d
Feeding Size
0.15-2mm
Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Materials:iron ore, copper ore, gold ore, tungsten ore, ilmenite, chromite, pyrite, zircon, etc.
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h

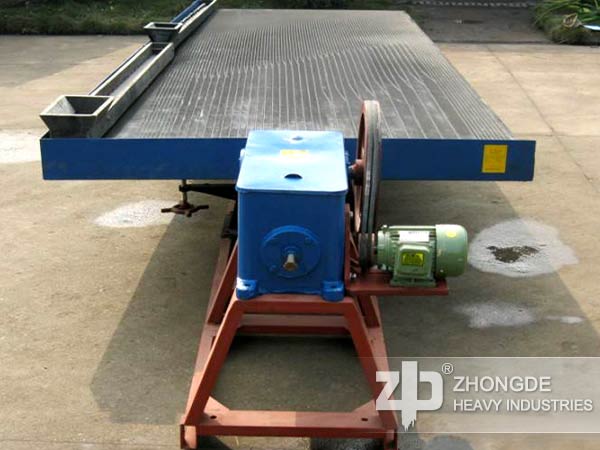

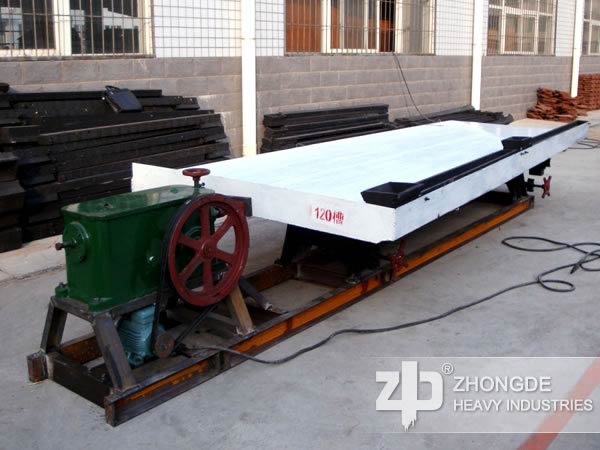

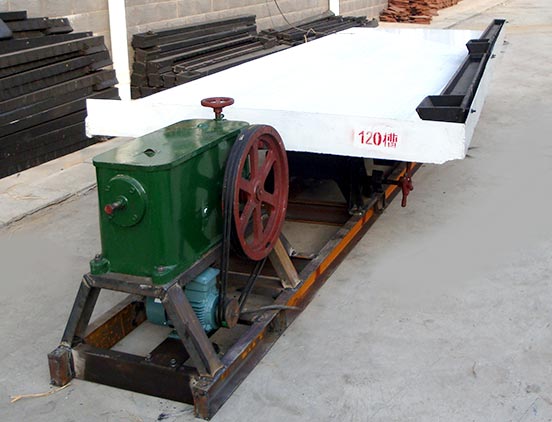

1.Shaking table,also known as shaking table concentrator and shaking table separator, is a kind of widely used gravity beneficiation machine.It is widely used for the gravity separation and selection of non-ferrous metal ores and precious metal ores.
2.It is widely used for the mineral separation of gold ore,tungsten ore,tin ore,tantalum,niobium and other rare metals and precious metals ore.
3.Shaking table can also be used for sorting coarse sand,fine sand,slime,manganese ore,coal,etc.When processing tungsten and tin ore,the effective recovery range of particle size is 2-0.22 mm.

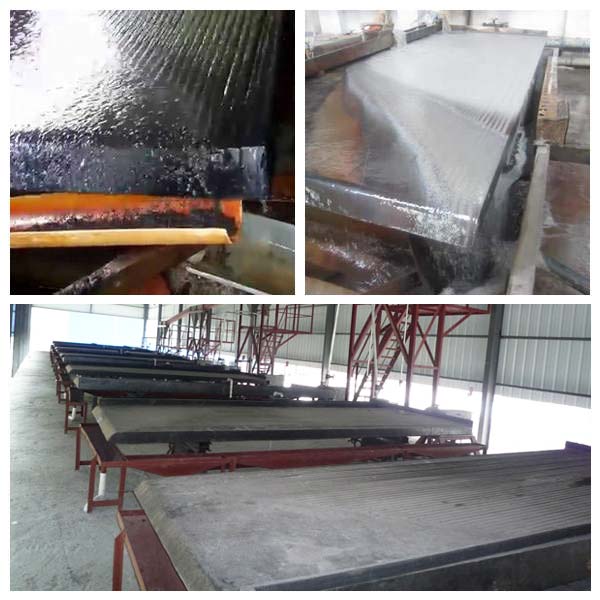

4.Shaking table is mainly composed of table bed,head part of table and sliding equipment.Table consists of frame and ore groove.Table surface is divided into coarse sand bed and grooved bed. According to the different particle size and concentration of ore dressing,select the appropriate table.
1.Stable performance,large pocessing capacity
2.High separation efficiency and enrichment ratio
3.Easy operation and maintenance,energy saving
4.Small footprint,low cost of equipment
| Name | Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
| Bed surface Dimensions |
Length （mm） |
4450 | 4450 | 4450 |
| Driving part Width （mm） |
1855 | 1855 | 1855 | |
| Concentrate part Width （mm） |
1546 | 1546 | 1546 | |
| Max.feeding size（mm） |
2 | 0.5 | 0.15 | |
| Feeding amount （t/d） |
30-60 | 10-20 | 15-25 | |
| Feeding thickness (%) |
25-30 | 20-25 | 15-25 | |
| Stroke （mm） |
16-22 | 11-16 | 8-16 | |
| Frequency (f) |
45-48 | 48-53 | 50-57 | |
| Bed surface Water quantity （t/d） |
80-150 | 30-60 | 10-17 | |
| Bed surface Horizontal obliquity(°) |
2.5-4.5 | 1.5-3.5 | 1-2 | |
| Bed surface Portrait obliquity(%) |
1.4 | 0.92 | ---- | |
| Table board corner(°) |
32-42 | 40 | 42 | |
| Concentrating area（㎡） |
7.6 | 7.6 | 7.6 | |
| Bed surface Length ratio |
2.6 | 2.6 | 2.6 | |
| Shape of side-bed surface |
Rectangle | Zigzag | Triangle | |
| Motor power(kw) |
1.1 | 1.1 | 1.1 | |
| Transmission device |
Eccentricity Linkage | |||
