Production Capacity
10-280t/h
Feeding Size
0-3mm
Environmental Friendly
Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Material:iron ore,magnetite, pyrrhotite, ilmenite, hematite, limonite, rare earth,manganese ore, slag, iron sand, slurry, etc.
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h

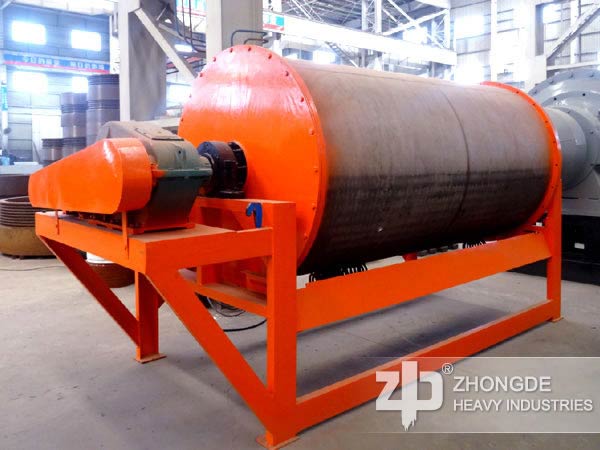

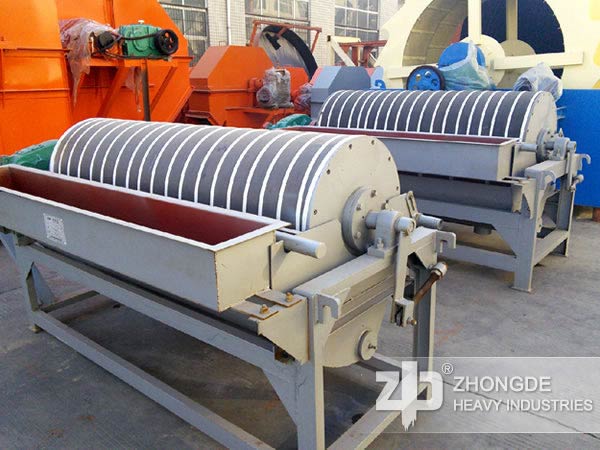

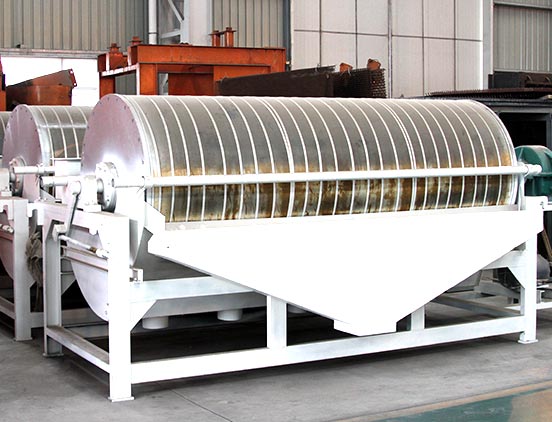

1.Magnetic separator/permanent drum magnetic separator is used for the recovery of ferromagnetic minerals such as iron ore,magnetite, pyrrhotite, ilmenite, hematite, limonite, rare earth,manganese ore, slag, iron sand, slurry, etc.
2.Used for separating various iron ores with high magnetism and less than 3mm granularity
3.Magnetic separator/permanent drum magnetic separator has two magnetic separation types:dry magnetic separator and wet magnetic separator.
4.According to the magnet force,it can be divided into high intensity/high gradient magnetic separator and low intensity/low gradient magnetic separator.

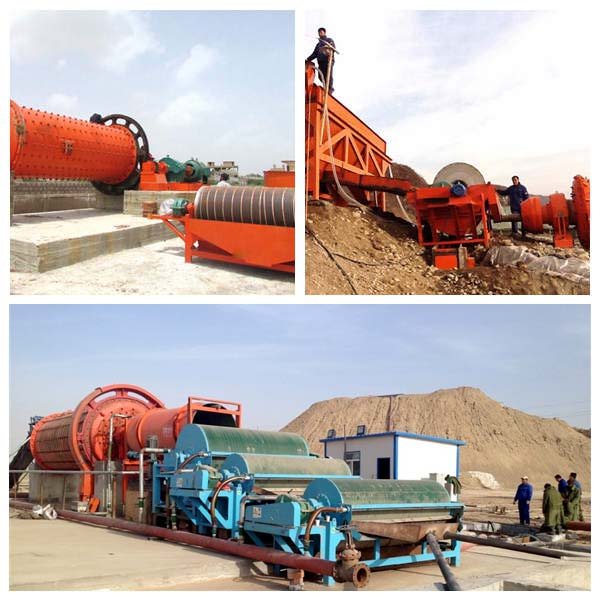

5.Apart from single mangetic separator, we can also provide complete mangetic separaion production line for you with best price.
1.Large processing capacity: 10~280 t/h
2.High separation efficiency,wet and dry magnetic separation.
3.Little magnetic flux leakage,energy saving.
4.Reliable performance and long service life.
5.Stable operation and easy maintenance.
| Model | Shell diameter （mm） |
Shell lenght （mm） |
Shell rotation speed（r/min） |
Feeding size （mm） |
Processing capacoty （t/h） |
Power（kw） |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
