Reference Price:
Get Latest PriceProduction Capacity
12-725t/h
Max Feeding Size
25-50mm
Environmental Friendly
Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Material: rock, aggregate, gravel, granite, limestone, quartz, basalt, cobbble, dolomite, calcite, etc.
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h

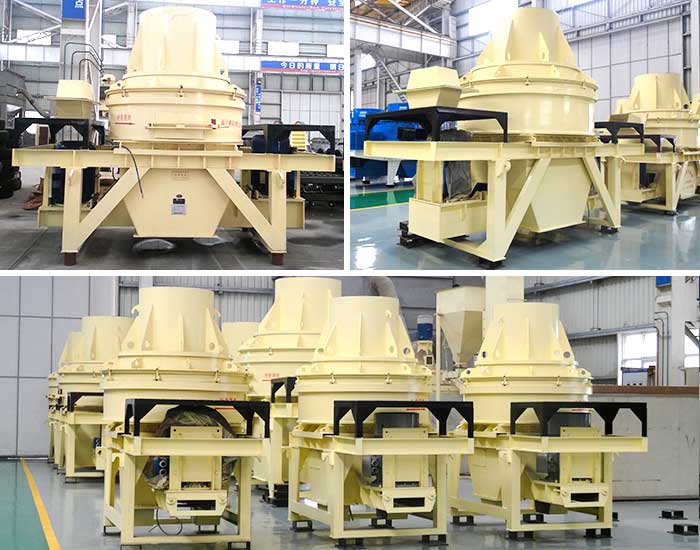

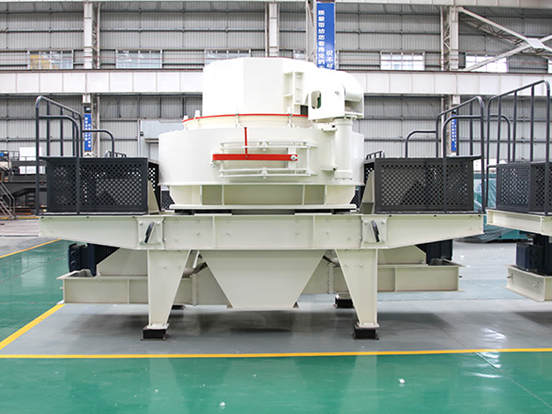

Sand crusher, also known as vsi sand crusher, is the key equipment for artificial sand making to provide high quality aggregate for construction, building, highway, water conservancy, etc.
Sand crusher is widely used for crushing of hard and brittle materials, such as rock, quartz, concrete aggregate, etc. It is especially suitable for the sand and aggregate making for construction and road paving.
During the crushing process of sand crusher, raw materials hit each other and not hit any metal parts. Based on this, it has long service life.?The commonly seen finished products include artificial sand (mechanism sand),silica sand ,etc
1.Deep chamber rotating design, higher production capacity
2.Adjustable inlet, controllable product granularity
3.Easy maintenance, lower costs
4.Long service life
Model | ZDVSI-7611 | ZDVSI-8518 | ZDVSI-9526 | ZDVSI-1140 | ZDVSI-1145 | ZDVSI-1150 | |
Capacity (t/h) |
Feed both at center and sides |
120-180 | 200-260 | 300-380 | 450-520 | 500-610 | 520-650 |
Feed at center |
60-90 | 100-130 | 150-190 | 225-260 | 245-355 | 255-365 | |
Max.feeding size(mm) |
SoZD material |
35 | 40 | 45 | 50 | 50 | 50 |
Hard material |
30 | 35 | 40 | 40 | 45 | 45 | |
Rotation speed (r/min) |
1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1150-1300 | 1150-1300 | |
Double Motor power(kw) |
4P 110 | 4P 180 | 4P 264 | 4P 400 | 4P 400 | 4P 500 | |
Overall dimension (L×W×H)(mm) |
3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5100×2700×3300 | 5500×2700×3300 | 5500×2700×3300 | |
Power supply | 380V 50HZ | ||||||
Lubrication station |
Double motor power of oil pump |
2×0.31Kw | |||||
Safety assuance |
Double oil pumps assure enough oil supply:automatic switch off with no oil stream or pressure,water cooling in summer,motor heating stare-up in winter. |
||||||
Overall dimension (L×W×H) (mm) |
820×520×1270 | ||||||
Power of oil tank heater |
2KW |
