VSI Crusher

Reference Price:

Get Latest Price Reference Price

Production Capacity
12-725t/h
Max Feeding Size
25-50mm
Environmental Friendly

Production capacity 12-1000 t/h

Max Input Size 35-300mm

Discharging Range 3-60mm

Processing Material: rock, aggregate, gravel, granite, limestone, quartz, basalt, cobbble, dolomite, calcite, etc.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Get Quotation Inquiry Online

Product Introduction
Technical Data

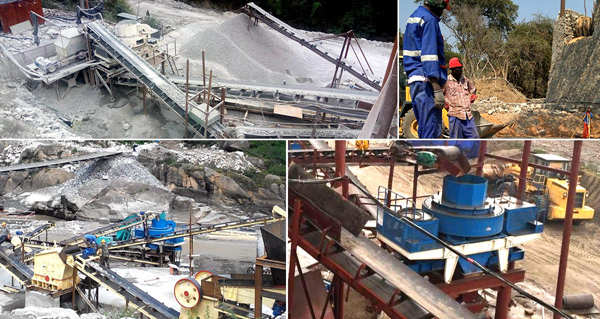

Production Case
Get Quotation

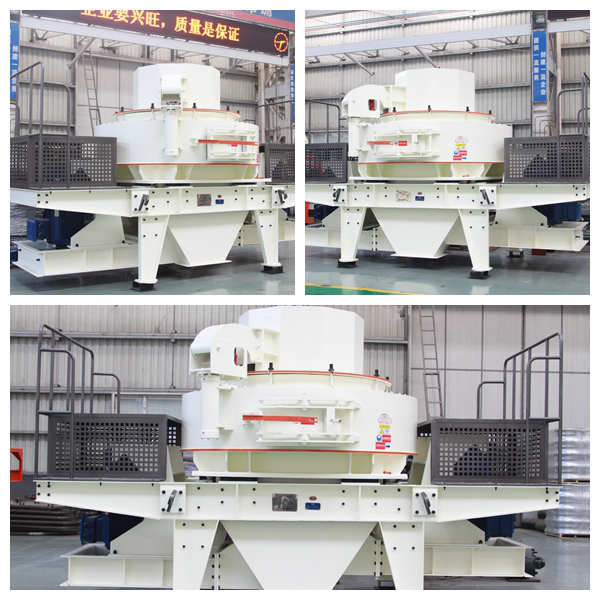

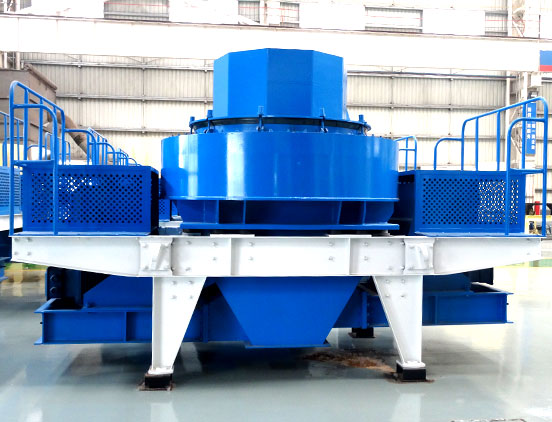

Introduction of VSI Crusher (Vertical Shaft Impact Crusher)

1.VSI crusher, namely vertital shaft impact crusher, is a kind of sand making machine.It is widely used to process quartz, sandstone, pebble, limestone, basalt and other stones into artificial sand for construction,building,highway,water conservancy,concrete batching plant,etc.

2.It is produced on the basis of decades of years' production experience and introduction of German advanced technology.It is the highly efficient artificial sand making machine to provide high quality aggregate for the fields mentioned above.

3.Besides the single vsi crusher, we also provide full sand making production line at factory price.

Advantages of VSI Crusher (Vertical Shaft Impact Crusher)

1.Deep chamber rotating design, larger production capacity

2.Hydraulic pressure opening device, easy maintenance

3.High crushing efficiency,long service life

vsi crusher

VSI Crusher Price

We are the manufacturer and exporter of VSI crusher in China. We have full models vsi crusher for sale at 100% fatory price. Welcome to visit our factory and company.

Technical Data

Model		ZDVSI-7611	ZDVSI-8518	ZDVSI-9526	ZDVSI-1140	ZDVSI-1145	ZDVSI-1150
Capacity (t/h)	Feed both at center and sides	120-180	200-260	300-380	450-520	500-610	520-650
Capacity (t/h)	Feed at center	60-90	100-130	150-190	225-260	245-355	255-365
Max.feeding size（mm）	SoZD material	35	40	45	50	50	50
Max.feeding size（mm）	Hard material	30	35	40	40	45	45
Rotation speed （r/min）		1700-1890	1520-1690	1360-1510	1180-1310	1150-1300	1150-1300
Double Motor power（kw）		4P 110	4P 180	4P 264	4P 400	4P 400	4P 500
Overall dimension （L×W×H）（mm）		3700×2150×2100	4140×2280×2425	4560×2447×2778	5100×2700×3300	5500×2700×3300	5500×2700×3300
Power supply		380V 50HZ
Lubrication station	Double motor power of oil pump	2×0.31Kw
	Safety assuance	Double oil pumps assure enough oil supply:automatic switch off with no oil stream or pressure,water cooling in summer,motor heating stare-up in winter.
	Overall dimension （L×W×H）（mm）	820×520×1270
	Power of oil tank heater	2KW
