Micro Powder Grinding Mill

Reference Price:

Get Latest Price Reference Price

Input Size
≤25mm
Output Size
0.033-0.173mm
More than 200 kinds of materials

Production capacity 12-1000 t/h

Max Input Size 35-300mm

Discharging Range 3-60mm

Processing Material: stone,rocks,pebble,limestone,calcite, granite, quartz, dolomite, slag, iron ore, copper ore, gold ore, coal gangue,basalt and other minerals.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Get Quotation Inquiry Online

Product Introduction
Technical Data
Production Case
Get Quotation

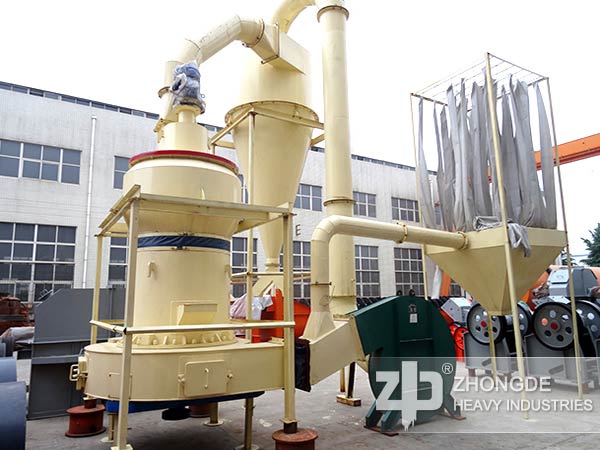

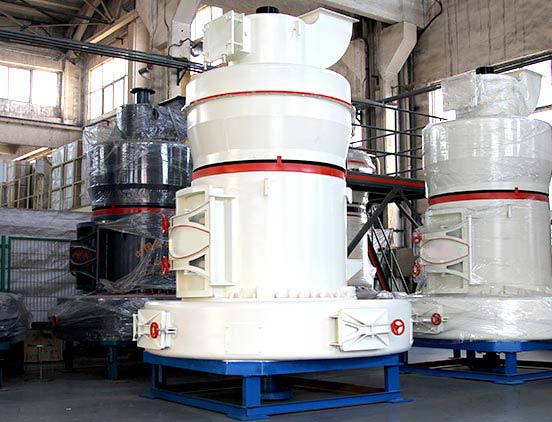

Introduction of Micro Powder Grinding Mill

1.Micro powder grinding mill is professionally designed for the highly fine powder grinding of barite,limestone,gypsum,slag,calcite,feldspar,marble,dolomite,fluorite and other 280 kinds of non-flammable and non-explosive materials whose Moh's hardness is less than 9.3 level and humidity less than 6% in mining,chemical,building materials industries.

2.The fineness of final product is adjustablefrom 80-425 mesh.Moreover,it can also be used to produce coarse powder from 30-80 mesh by adding the particular parts.

3.Micro powder grinding mill is optimized on the basis of Raymond mill, it has been exported to India,Indonesia,Kenya,Ethiopia,Egypt,South Africa,Saudi Arabia,etc.

4.If you need higher fineness of final product,you can choose three-ring and medium speed micro powder mill.

Advantages of Micro Powder Grinding Mill

1.Strong adaptability to materials,wide application

2.Uniform fineness,high throughput rate

3.Stable and reliable operation

4.Long service life,easy maintenance

Technical Data

Parameter Model	Raymond mill62	High strength66	High strength76	High strength87	High strength92	High strength93	High strength97	Raymond mill4119	Raymond mill4525
Feeding size（mm）	<15	<15	<20	<25	<25	<25	<25	≤25	≤30
Size of finished product（mm）	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.044	0.173-0.044
ShiZD output of different material fineness(t)	0.6-9	1-20	1.5-25	2.8-33	3-36	3.5-40	4-52	8-78	16-176
Rotate speed of central shart（r/min）	274	190	170	161	148	140	130	105	82
Diameter of pulverizing ring（mm）	525	725	850	907.5	973	1006	1050	1400	1770
Diameter of pulverizing ring（mm）	150	210	250	270	300	300	310	410	450
Height of pulverizing roller（mm）	100	150	150	150	160	160	170	190	250
Main Motor	7.5	15	18.5	22	30	30	37	75	132
Fan Motor	4-5.5	4-11	4-15	4-18.5	4-22	2-22	4-37	4-75	4-132
Analyzer Motor	6-1.1	6-2.2	6-2.2	6-2.2	6-2.2	6-3	4A-5.5	4B-7.5	4A-18.5
