Reference Price:
Get Latest PriceProduction Capacity
0.62-180t/h
Feeding Size
≤50mm
Discharging Size
0.833-0.147mm
Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Material: limestone, quartz, aluminum slag, iron ore, copper ore, gold ore, bauxite, calcite, barite, coal gangue, coal, gypsum, slag, fly ash,etc.
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h

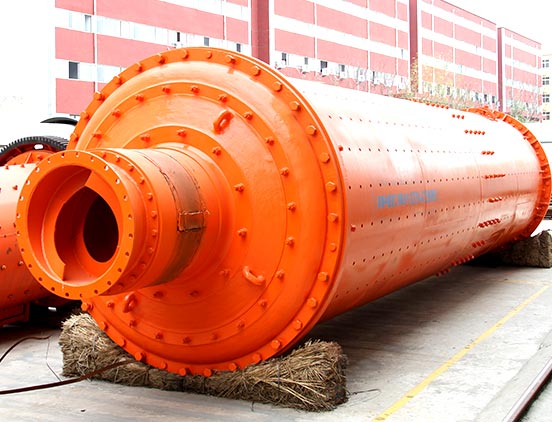

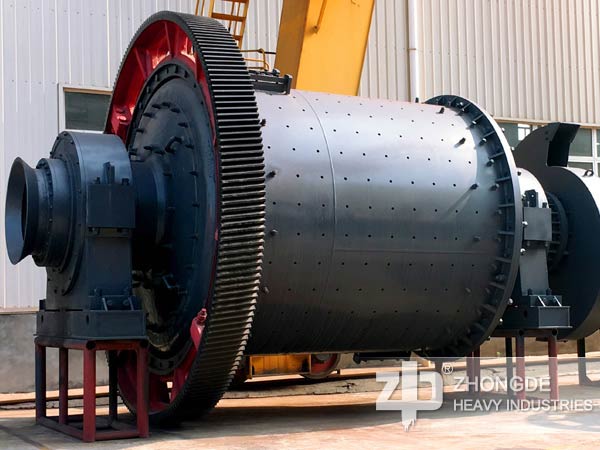

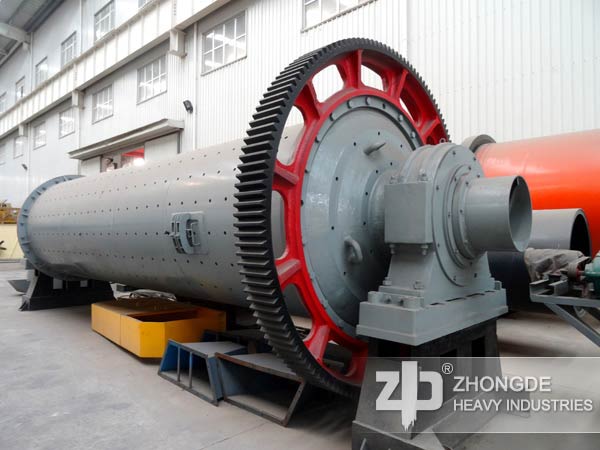

1.The MBS rod mill manufactured by our company adopt advanced controllable feeding and dischargong technology,which changes the traditional point contact into line contact.
2.It can be equipped with proper grinding media according to actual grinding materials, which makes discharging particle size more uniform and higher output.
3.It is widely used in refractory,chemical,glass,metallurgy and other fields that has higher requirements on final product fineness. In recenet years, it is used in sand making industry.
4.It is divided into two types with different function which are dry rod mill and wet rod mill,so customers can choose according to theirs actual need.
1.High production capacity,full models for sale(0.62-180t/h)
2.Uniform and even discharging particle size
3.Professioanl structure,easy opeartion and maintenance
4.Strong adaptability to materials,wide application
Model |
Shell Specifications (mm)
|
Shell rotation speed (r/min) |
Feeding size (mm) |
Discharging size (mm) |
Processing capacity (t/h) |
Power (kw) |
Total weight (t) |
|
Diameter | Length | |||||||
MBS0918 | 900 | 1800 | 36-38 | ≤25 | 0.833-0.147 | 0.62-3.2 | 18.5 | 5.9 |
MBS0924 | 900 | 2400 | 36 | ≤25 | 0.833-0.147 | 0.81-4.3 | 22 | 6.7 |
MBS1224 | 1200 | 2400 | 36 | ≤25 | 0.833-0.147 | 1.1-4.9 | 30 | 13.9 |
MBS1530 | 1500 | 3000 | 29.7 | ≤25 | 0.833-0.147 | 2.4-7.5 | 75 | 19.8 |
MBS1830 | 1830 | 3000 | 25.4 | ≤25 | 0.833-0.147 | 4.8-11.6 | 130 | 34.9 |
MBS2130 | 2100 | 3000 | 23.7 | ≤25 | 0.833-0.147 | 14-35 | 155 | 46.5 |
MBS2136 | 2100 | 3600 | 23.7 | ≤25 | 0.833-0.147 | 19-43 | 180 | 48.7 |
MBS2430 | 2400 | 3000 | 21 | ≤50 | 0.833-0.147 | 25-65 | 245 | 59.7 |
MBS2736 | 2700 | 3600 | 20.7 | ≤50 | 0.833-0.147 | 32-86 | 380 | 92.5 |
MBS2740 | 2700 | 4000 | 20.7 | ≤50 | 0.833-0.147 | 32-92 | 400 | 95 |
MBS3245 | 3200 | 4500 | 18 | ≤50 | 0.833-0.147 | 64-180 | 630 | 149 |
