Reference Price:
Get Latest Price
Production Capacity
25-70t/h
Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Materials: silica sand, river sand, yellow sand, etc.
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h

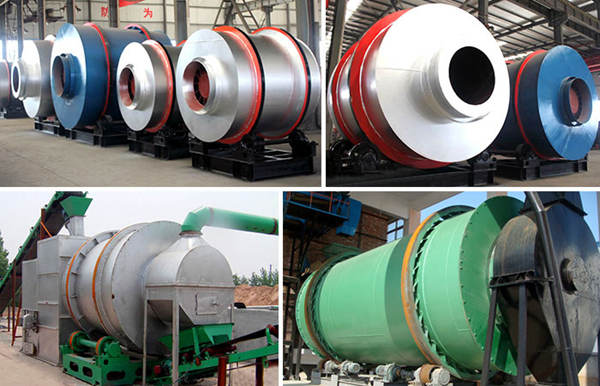

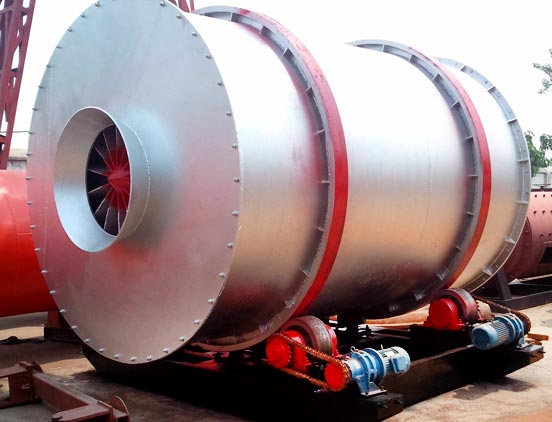

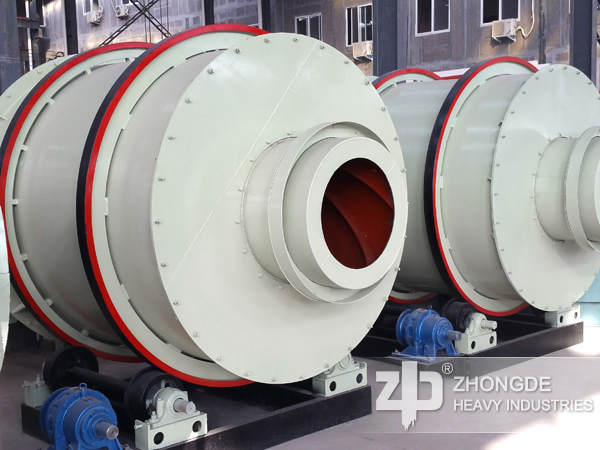

1.Three-cylinder dryer/three-drum dryer is a kind of sand drying machine and it has been the first choice of many customers for sand drying in construction,dry-mixed mortar,chemical and other industries. It is professionally designed to used for the drying of river sand, silica sand, yellow sand,quartz sand,etc,
2.It is developed on the basis of rotary drum dryer structure,increase the preheating time befor the sand enter the machine and extend the wet material drying time in the machine.
3.It is equipped with sealing,insulation and reasonable supporting measures,which greatly improves the production capacity of the dryer machine.
4.Due to its high performance,it has been favored by many customers from home and abroad.
5.Besides this kind of sand dryer machine, we also have sand rotary dryer for sale.
1.High thermal efficiency,excellent drying effect
2.Adjustable final moisture standard.
3.Compact structure,small floorspace.
4.Energy saving,low costs.
| Item/Unit/Model | Φ2.5×7m | Φ2.7×7m | Φ3.0×7.0m | Φ3.2×7.0m | Φ3.6×8m |
| Diameter of outer cylinder(m) | 2.5 | 2.7 | 3.0 | 3.2 | 3.6 |
| Length of outer cylinder(m) | 7 | 7 | 7.0 | 7.0 | 8 |
| Cylinder volume( m3 ) | 16.63 | 16.63 | 52.678 | 52.678 | 81.38 |
| Rotating speed of cylinder(rpm) | 4-10 | 4-10 | 4 -10 | 4 -10 | 4 -10 |
| Initial moisture of slag(%) | 10-12 | 10-12 | 10-12 | 10-12 | 10-12 |
| Final moisture of slag(%) | 1 | 1 | 1 | 1 | 1 |
| Initial moisture of yellow ground(%) | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 |
| Final moisture of yellow ground (%) | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 | 0.5-1 |
| Highest intake air temperature(℃) | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ |
| Production capacity(T/h) | Yellow sand25-30 Slag20-25 |
Yellow sand30-35 Slag25-30 |
Yellow sand35-40 Slag30-35 |
Yellow sand45-50 Slag35-40 |
Yellow sand65-70 Slag60-65 |
| Motor type | Y2-132m-4E | Y2-132m-4E | Y2-160m-4 | Y2-160m-4 | Y2-160m-4 |
| Motor power(kw) | 7.5×2 | 11×2 | 7.5×4 | 7.5×4 | 15×4 |
| Reducer type | XWD7-23-11W | XWD7-23-11W | XWD6-23-7.5KW | XWD6-23-7.5KW | XWD8-23-15KW |
| Velocity ratio of reducer | 29 | 29 | 29 | 29 | 29 |
