New Type Full Hydraulic Cone Crusher

Reference Price:

Get Latest Price Reference Price

Production Capacity
72-1100t/h
Max Iutput Size
60-326mm
Output Size
8-51mm

Production capacity 12-1000 t/h

Max Input Size 35-300mm

Discharging Range 3-60mm

Processing Material: stone, limestone, granite, quartz, dolomite, slag, iron ore, copper ore, gold ore, basalt and other minerals.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Get Quotation Inquiry Online

Product Introduction
Technical Data

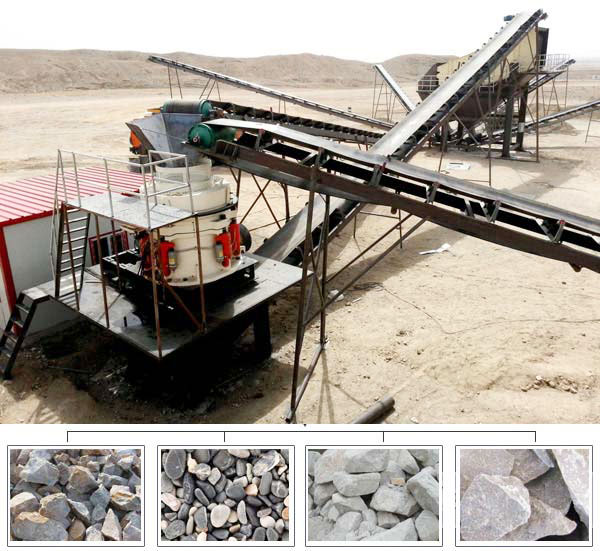

Production Case
Get Quotation

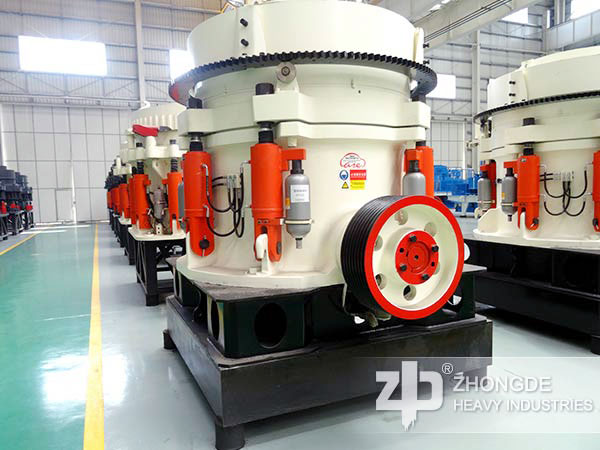

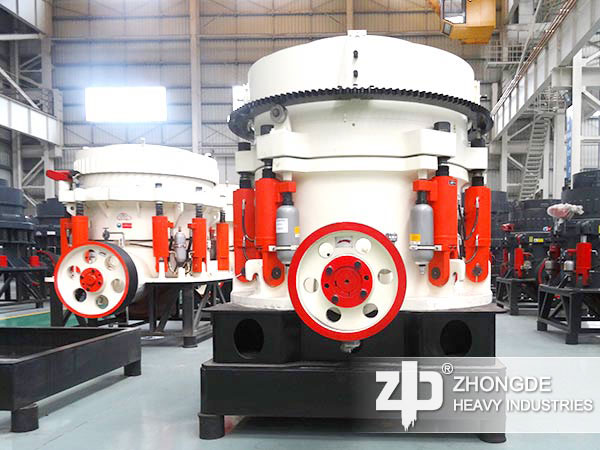

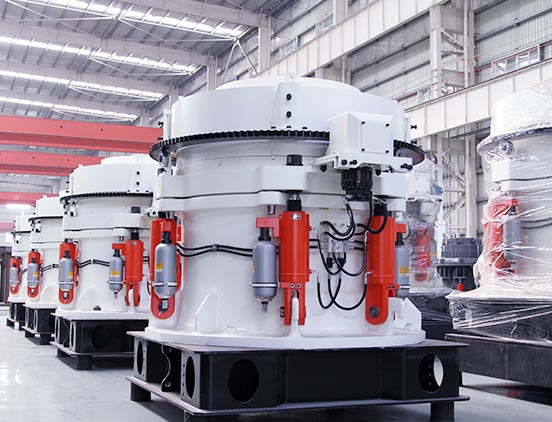

Introduction of New Type Full Hydraulic Cone Crusher/Multi-cylinder Hydraulic Cone Crusher

1.This series of hydraulic cone crusher is the new type multi-cylinder hydraulic cone crusher produced by our company. It is specially designed to crush the material with medium and high hardness,such as basalt,stone,limestone,ore,etc.

2.It is developed based on the latest technology,which not only improves the crushing efficiency, but also meets the strict requirements of final product shape.

3.Compared with spring cone crusher,it has better performance.It can be used for primary/secondary/fine crushing in mining,quarry,construction industry and other fields.

4.Due to its optimized structure,hydraulic cone crusher is the ideal choice for stone and mineral crushing of different stages.

Advantages of New Type Full Hydraulic Cone Crusher/Multi-cylinder Hydraulic Cone Crusher

1.Large production capacity 72-1100t/h,full models for sale.

2.High crushing efficiency,excellent final product particle shape.

3.High automation,reliable performance.

4.Easy operation and maintenance,saving cost.

Technical Data

Model	Cavity	Diameter of large end of crushing cone （mm）	Width of Feeding Opening（mm）	Max. feeding size (mm)	Adjusting Range of Discharge Opening (mm)	Processing capacity（t/h）	Main motor power（kw）	Weight of Main Machine （t）
ZDHP200	C1	900	210	178	22~38	160~250	160	10.1
	C2		155	132	18~38	145~250
	C3		130	110	14~38	120~250
	F1		118	100	12~25	108~210
	F2		90	76	10~25	81~210
	F3		70	60	8~25	72~210
ZDHP300	C1	1100	235	200	26~45	230~445	220	17.8
	C2		211	180	20~45	200~445
	C3		135	115	16~45	180~445
	F1		124	105	14~25	160~220
	F2		96	82	12~25	140~220
	F3		70	60	8~25	120~220
ZDHP400	C1	1400	330	280	26~51	270~630	315	25
	C2		200	170	22~51	243~630
	C3		152	130	16~51	210~630
	F1		135	115	12~25	162~370
	F2		106	90	10~25	126~370
	F3		80	68	8~25	104~370
ZDHP500	C1	1500	335	285	32~51	365~790	400	34.1
	C2		229	190	25~51	328~790
	C3		180	152	19~51	280~790
	F1		152	130	13~25	202~450
	F2		124	105	10~25	158~450
	F3		88	75	8~25	122~450
ZDHP800	C1	2000	385	326	32~51	616~1100	630	69.2
	C2		350	298	25~51	522~1100
	C3		280	238	16~51	380~1100
	F1		160	136	13~25	328~730
	F2		120	102	10~25	270~730
	F3		90	77	8~25	166~730
