Home / Products / Heavy Hammer Crusher

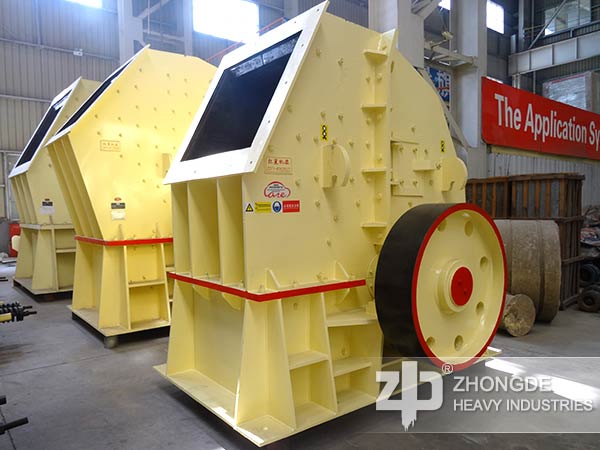

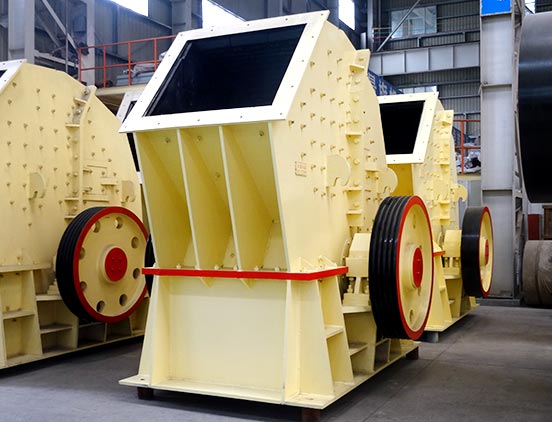

Heavy Hammer Crusher

Heavy Hammer Crusher

Reference Price:

Get Latest Price Reference Price
  • Production Capacity
    100-2600t/h

  • Feeding Size
    ≤1700mm

  • More than 200 kinds of materials

Production capacity 12-1000 t/h

Max Input Size 35-300mm

Discharging Range 3-60mm

Processing Material: stone, limestone, calcite, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, coal gangue and other minerals.

Email:sales@zdzg.com (contact us by one of the three ways)

Email: sales@zdzg.com (contact us by one of the three ways)

Trade Assurance:

Zhongde Heavy Industries Co., Ltd. China(Mainland)

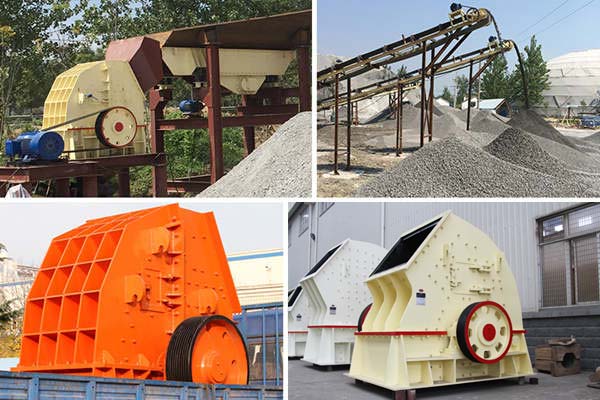

1, Heavy hammer crusher is applied to highways, high-speed railways, tunnels, large bridge, cement, metallurgy, building materials, coal, and chemical industry.

2, Heavy hammer crusher has large feeding size and small discharging size, and can change secondary crushing to primary crushing.

3, This heavy hammer crusher has large weight, and rotor speed is reasonable, which fully embodies the advantages of crushing light material with heavy hammer, and has a unique super ability to erode the stone crusher.

Advantages of Heavy Hammer Crusher

1, Heavy hammer crusher is new type of crusher improved based on the PC series crusher.

2, According to user feedback and breaking industry developments, and combined with experimental data and research and development of stone crushing test.

3, Compared with hammer crusher, heavy hammer crusher has large hammer pin diameter, heavy hammer head, high crushing line speed and other striking features.

4,As well as large feeding granularity, large crushing ratio, low maintenance costs, etc.

Technical Data

Model Rotor diameter×length
(mm)
Feed opening Length×width
(mm)
Feeding size
(mm)
Capacity
(t/h)
Power
(kw)
Total weight
(t)
PCZ1308 1300×790 910×890 ≤400 100-160 132 2880×2130×2390
PCZ1410 1400×1000 1020×750 ≤500 180-230 4P 160/2×90 2830×2100×2485
PCZ1610 1600×1000 1150×1000 ≤600 260-350 132×2 3370×2415×2750
PCZ1615 1600×1500 1400×1000 ≤600 380-550 200×2 3370×2925×2750
PCZ1716 1700×1600 1640×1300 ≤650 600-850 250×2 3520×3000×3210
PCZ1720 1700×2000 1980×1300 ≤650 700-1000 400×2 3670×3390×3330
PCZ1920 1900×2000 1850×1600 ≤800 900-1500 500×2 3729×3300×4450
PCZ2225 2200×2500 2100×2300 ≤1200 1500-3000 1250 4620×5380×4780
