Reference Price:
Get Latest PriceProduction capacity
5-100t/h
Feeding Size
50-100mm
Discharging Size
0-5mm
Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Material: stone,rocks,pebble,limestone,calcite, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, coal gangue,etc.
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h

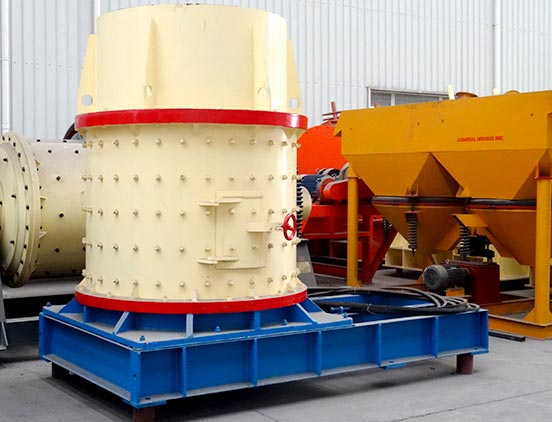

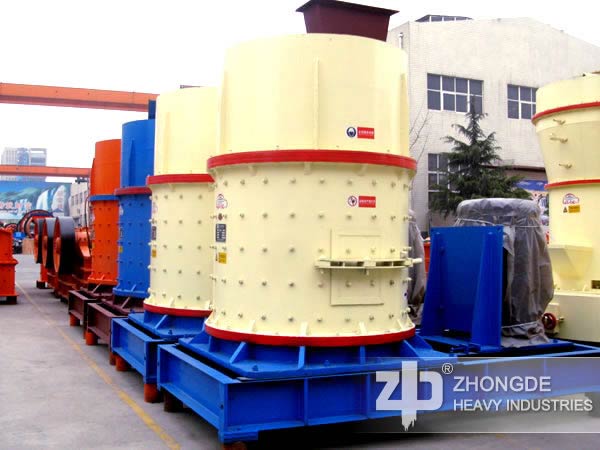

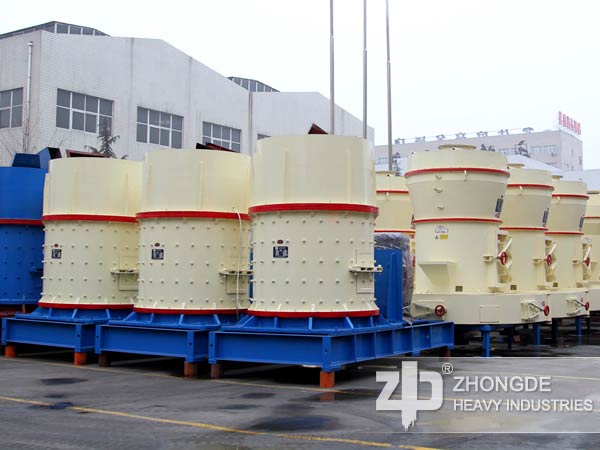

1.The compound crusher can crush large materials, and the discharging granularity can be adjusted at will without the board hammer and lining plate abrasion. It adopts the no-grizzly-bar structure to avoid blocking, which is suitable to crush materials with much moisture and silt content.
2.The long life bearing is arranged horizontally to crush high temperature materials like cement clinker. The rotor of the compound crusher has special structure which won’t be worn once crushed.
1.Big crushing ratio, grain-size can be adjusted arbitrarily.
2.No screen bar settings, crushing high water content, hydraulic large material clogging.
3.Using elastic and adjusting mechanism, not into broken material can self-control.
4.Won't cause equipment damage, bearing level decoration.
5.Long service life, low consumption ,stable running ,simple structure.
Model | 800 | 1000 | 1250 | 1500 | 1750 | |
Rotor diameter (mm) | 650 | 800 | 1000 | 1250 | 1560 | |
Cylinder height(mm) | 800 | 850 | 850 | 1000 | 1410 | |
Main shaft rotation speed (r/min) | 1350 | 970 | 740 | 650 | 600 | |
Feeding size(mm) | 50 | 70 | 100 | 100 | 100 | |
Discharging size (mm) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | |
Processing capacity (t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 | |
Motor | Power(kw) | 30 | 55 | 75 | 110 | 132 |
Rotation speed | 1440 | 1440 | 750 | 750 | 750 | |
Dimensions(L×W×H)(mm) | 2200×860×1980 | 2700×1160×2000 | 2800×1400×2730 | 3100×1900×2300 | 3350×2100×2800 | |
Total weight (t) | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
