Production Capacity
8-800m³/h
Feeding Size
400mm
More than 200 kinds of materials
Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Material: stone,rocks,pebble,limestone,calcite, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, coal gangue,basalt and other minerals.
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h

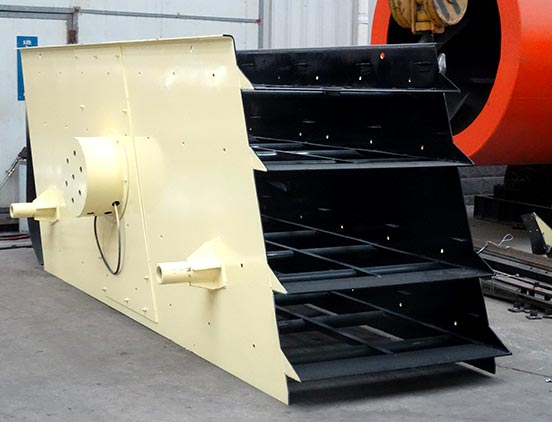

1.Circular vibrating screen is widely used to classify the minerals such as stone,sand,ore and othe kinds of minerals in mining,quarry,construction,building material industry.
2.It is widely used as a kind of auxiliary equipment of crusher machine in stone production line,sand making production and ore beneficiation line.
3.Circular vibrating screen can not only be featured with single layer,but also be with multi-layers. It is used to sort and classify the materials accoding to the particle size by its circular vibration.
1.Large processing capacity,strong vibrating force.
2.Reliable performance,long service life.
3.Easy operation and maintenance.
4.Energy saving,low ccosts.
| Model | Sieve layer |
Sieve area (m2) |
Mesh size (mm) |
Max. feeding size (mm) |
>Processing capacity (m3/h) |
Vibrating Frequency (r/min) |
Double amplitude (mm) |
Motor power (kw) |
Sieve obliquity (°) |
Sieve specification (mm) |
>Dimensions (L×W×H) (mm) |
| 2YK1225 | 2 | 6 | 4-50 | 200 | 8-60 | 800-970 | 8 | 6P 5.5KW | 20 | 1200×2500 | 2930×1860×870 |
| 3YK1225 | 3 | 9 | 4-50 | 200 | 10-70 | 800-970 | 8 | 6P 5.5KW | 20 | 1200×2500 | 3070×1860×1210 |
| 2YK1230 | 2 | 7.2 | 4-50 | 200 | 12-78 | 800-970 | 8 | 6P 7.5KW | 20 | 1200×3000 | 3430×1860×870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 200 | 13-80 | 800-970 | 8 | 6P 7.5KW | 20 | 1200×3000 | 3570×1860×1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 200 | 15-86 | 800-970 | 8 | 6P 7.5KW | 20 | 1200×3700 | 4050×1860×870 |
| 3YK1237 | 3 | 13.32 | 4-50 | 200 | 16-90 | 800-970 | 8 | 6P 7.5KW | 20 | 1200×3700 | 4270×1860×1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 200 | 20-125 | 800-970 | 8 | 6P 11KW | 20 | 1500×3500 | 4120×2210×1230 |
| 3YK1535 | 3 | 15.75 | 5-50 | 200 | 21-125 | 800-970 | 8 | 6P 11KW | 20 | 1500×3500 | 4360×2210×1610 |
| 2YK1545 | 2 | 13.5 | 5-50 | 200 | 22-150 | 800-970 | 8 | 6P 11KW | 20 | 1500×4500 | 5120×2210×1230 |
| 3YK1545 | 3 | 20.25 | 5-50 | 200 | 22-150 | 800-970 | 8 | 6P 15KW | 20 | 1500×4500 | 5360×2210×1610 |
| 4YK1545 | 4 | 27 | 5-50 | 200 | 22-155 | 800-970 | 8 | 6P 15KW | 20 | 1500×4500 | 5930×2210×2060 |
| 2YK1548 | 2 | 14.4 | 5-50 | 200 | 22.5-162 | 800-970 | 8 | 6P 11KW | 20 | 1500×4800 | 5420×2210×1230 |
| 3YK1548 | 3 | 21.6 | 5-50 | 200 | 22.5-162 | 800-970 | 11 | 6P 15KW | 20 | 1500×4800 | 5660×2210×1610 |
| 4YK1548 | 4 | 28.8 | 5-50 | 200 | 22.5-162 | 800-970 | 8 | 6P 18.5KW | 20 | 1500×4800 | 6230×2210×2060 |
| 2YK1848 | 2 | 17.28 | 5-80 | 200 | 25-206 | 750 | 8 | 6P 18.5KW | 20 | 1800×4800 | 5420×2550×1420 |
| 3YK1848 | 3 | 25.92 | 5-80 | 200 | 32-276 | 750 | 8 | 6P 18.5KW | 20 | 1800×4800 | 5660×2550×1780 |
| 4YK1848 | 4 | 34.56 | 5-80 | 200 | 32-285 | 750 | 8 | 6P 22KW | 20 | 1800×4800 | 6290×2550×2160 |
| 2YK1854 | 2 | 19.44 | 5-80 | 200 | 32-312 | 800-970 | 8 | 6P 22KW | 20 | 1800×5400 | 5960×2550×1420 |
| 3YK1854 | 3 | 29.16 | 5-80 | 200 | 32-312 | 800-970 | 8 | 6P 22KW | 20 | 1800×5400 | 6260×2550×1780 |
| 4YK1854 | 4 | 38.88 | 5-80 | 200 | 32-336 | 800-970 | 8 | 6P 22KW | 20 | 1800×5400 | 6830×2550×2160 |
| 2YK2160 | 2 | 25.2 | 5-100 | 200 | 50-475 | 970 | 8 | 6P 30KW | 20 | 2100×6000 | 6720×2840×1530 |
| 3YK2160 | 3 | 37.8 | 5-100 | 200 | 50-475 | 970 | 8 | 6P 30KW | 20 | 2100×6000 | 7030×2840×1910 |
| 4YK2160 | 4 | 50.4 | 5-100 | 200 | 50-497 | 970 | 8 | 6P 37KW | 20 | 2100×6000 | 7300×2840×2380 |
| 2YK2460 | 2 | 28.8 | 5-100 | 200 | 65-550 | 970 | 8 | 6P 30KW | 20 | 2400×6000 | 7020×3140×1530 |
| 3YK2460 | 3 | 43.2 | 5-100 | 200 | 70-620 | 970 | 8 | 6P 37KW | 20 | 2400×6000 | 7300×3140×1910 |
| 4YK2460 | 4 | 57.6 | 5-100 | 200 | 80-680 | 970 | 8 | 6P 45KW | 20 | 2400×6000 | 7600×3140×2380 |
| 2YK2870 | 2 | 39.2 | 5-100 | 200 | 120-680 | 750 | 8 | 8P 22×2KW | 20 | 2800×7000 | 7600×4320×1620 |
| 3YK2870 | 3 | 58.8 | 5-100 | 200 | 180-720 | 750 | 8 | 8P 22×2KW | 20 | 2800×7000 | 7800×4320×2120 |
| 2YK3072 | 2 | 43.2 | 5-100 | 200 | 200-700 | 750 | 8 | 8P 22×2KW | 20 | 3000×7200 | 7800×4520×1750 |
| 3YK3072 | 3 | 64.8 | 5-100 | 200 | 230-800 | 750 | 8 | 8P 22×2KW | 20 | 3000×7200 | 8000×4520×2300 |
