Production Capacity
6.5-135t/h
Production capacity 12-1000 t/h
Max Input Size 35-300mm
Discharging Range 3-60mm
Processing Materials:cement clinker
Email:sales@zdzg.com (contact us by one of the three ways)
Email: sales@zdzg.com (contact us by one of the three ways)
Zhongde Heavy Industries Co., Ltd. China(Mainland)
Response Time <24h
Factory Price 100%
Online Service 24h

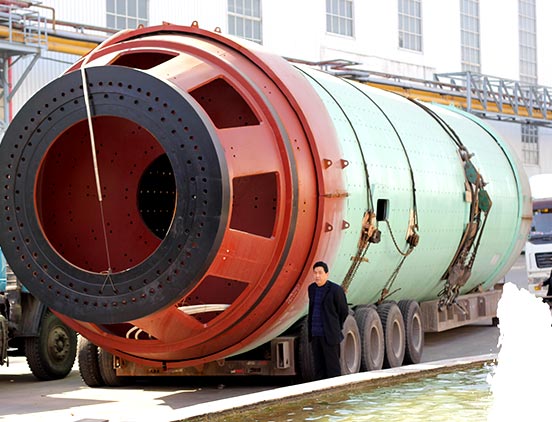

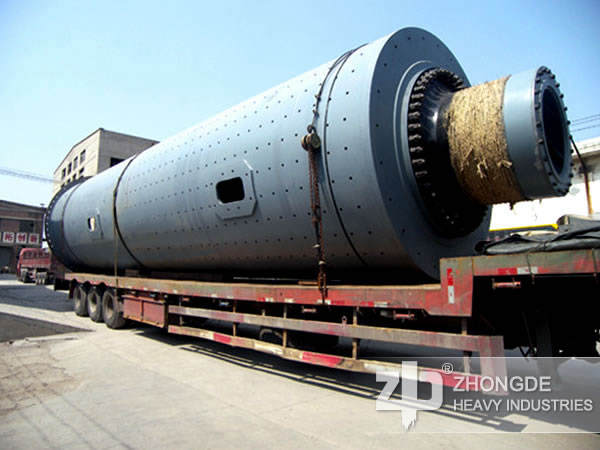

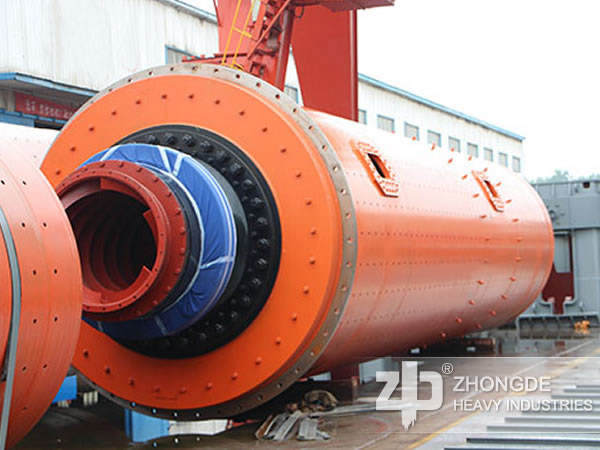

1.Cement mill/cement ball mill is the the key clinker grinding equipment after the crushing process and it plays an important role in cement production line. It is widely used in cement,silicate,building materials industries and other fields.
2.Cement mill/cement ball mill is mainly composed of cylinder,lining plate,separationplate,main bearing,feeding device,discharging device,transmission device,etc.
3.On the basis of continous research,we have developed fuu models of cement mill to meet different fineness requirements.It can be used for dry grinding and wet grinding.
1.Large production capacity,continuous operation
2.Easy to adjust final product fineness
3.Reliable operation,easy maintenance
4.Lower energy consumption,long service life
| Product Specification (m) | Grinding Way | Transmission Form | Reducer | Motor power (kw) | Production Capacity (t/h) | Total Weight (t) | |
| Model | Speed reduction ratio | ||||||
| Φ1.83×7 | Open flow | Edge | ZD60 | 4.5 | 245 | 6.5-8 | 43.8 |
| Φ1.83×7 | Open flow | Edge | ZD60 | 4.5 | 245 | 6.5-8 | 43.8 |
| Φ2.2×7.5 | Open flow | Edge | ZD70 | 5 | 380 | 8-10 | 64.8 |
| Φ2.2×11 | Open flow | Edge | D110 | 35.5 | 630 | 12-13 | 104.6 |
| Φ2.2×13 | Open flow | Edge | D110 | 35.5 | 630 | 16-18 | 114 |
| Φ2.4×13 | Open flow | Edge | D110 | 35.5 | 800 | 20-23 | 130.6 |
| Φ2.6×13 | Open flow | Edge | MFY100 | 19.5 | 1000 | 28-32 | 158 |
| Φ3×9 | Circle flow | Edge | D125 | 41.2 | 1000 | 28-36.5 | 167 |
| Φ3×11 | Circle flow | Edge | D140 | 42.8 | 1250 | 36-47 | 180 |
| Φ3.2×13 | Open flow | Edge | D140 | 36.5 | 1600 | 45-50 | 225 |
| Φ3.5×13 | Circle flow | Edge | JDX1000 | 5.84 | 2000 | 60-65 | 275 |
| Φ3.8×13 | Open flow | Central shaft | MFY250 | 16.5 | 2500 | 60-62 | 320 |
| Φ4.2×13 | Open flow | Central shaft | JQS3550 | 15.6 | 3530 | 85-87 | 380 |
| Φ4.6×14 | Circle flow | Central shaft | JSI160-C | 14.6 | 4200 | 120-135 | 485 |
